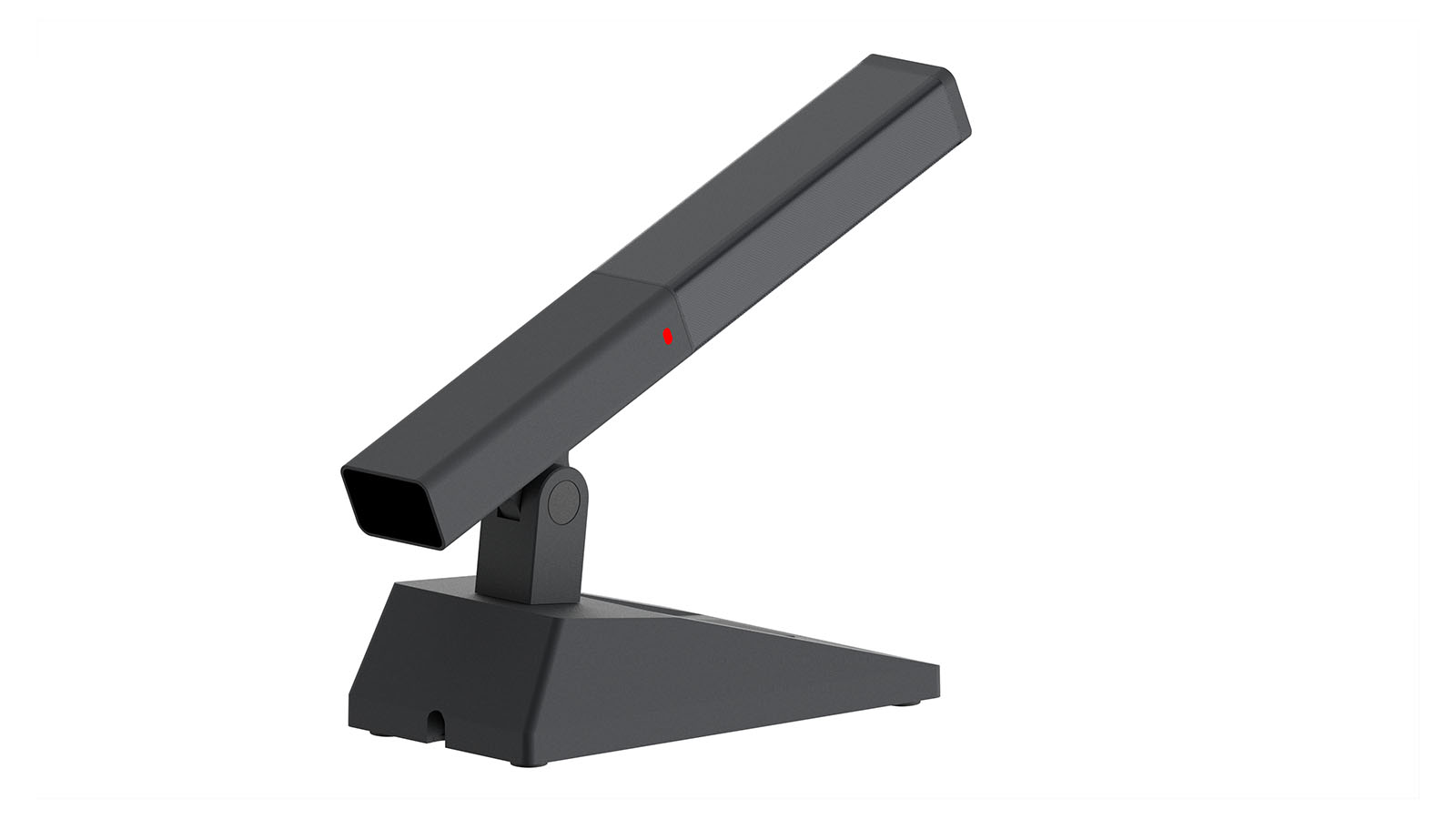

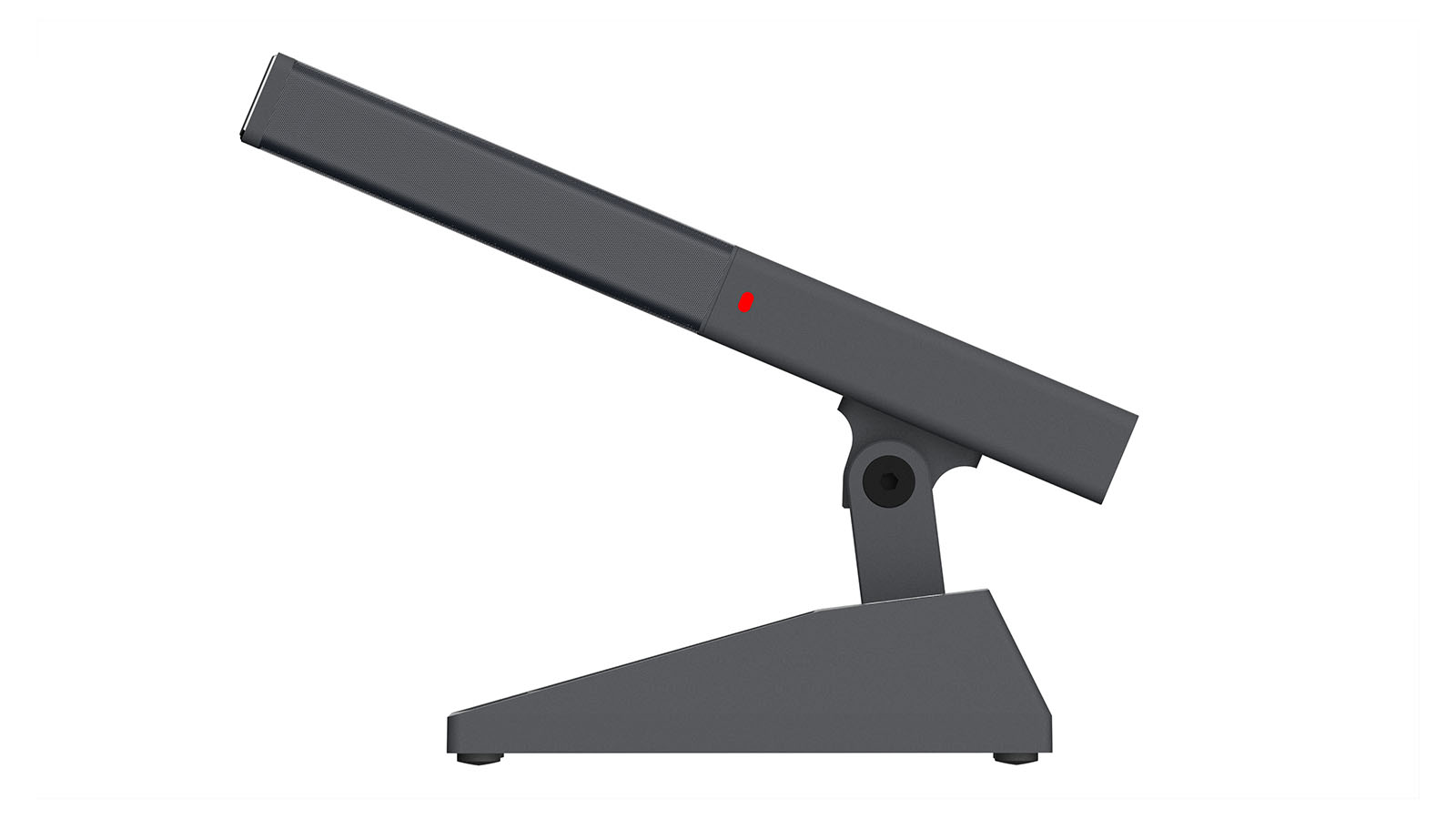

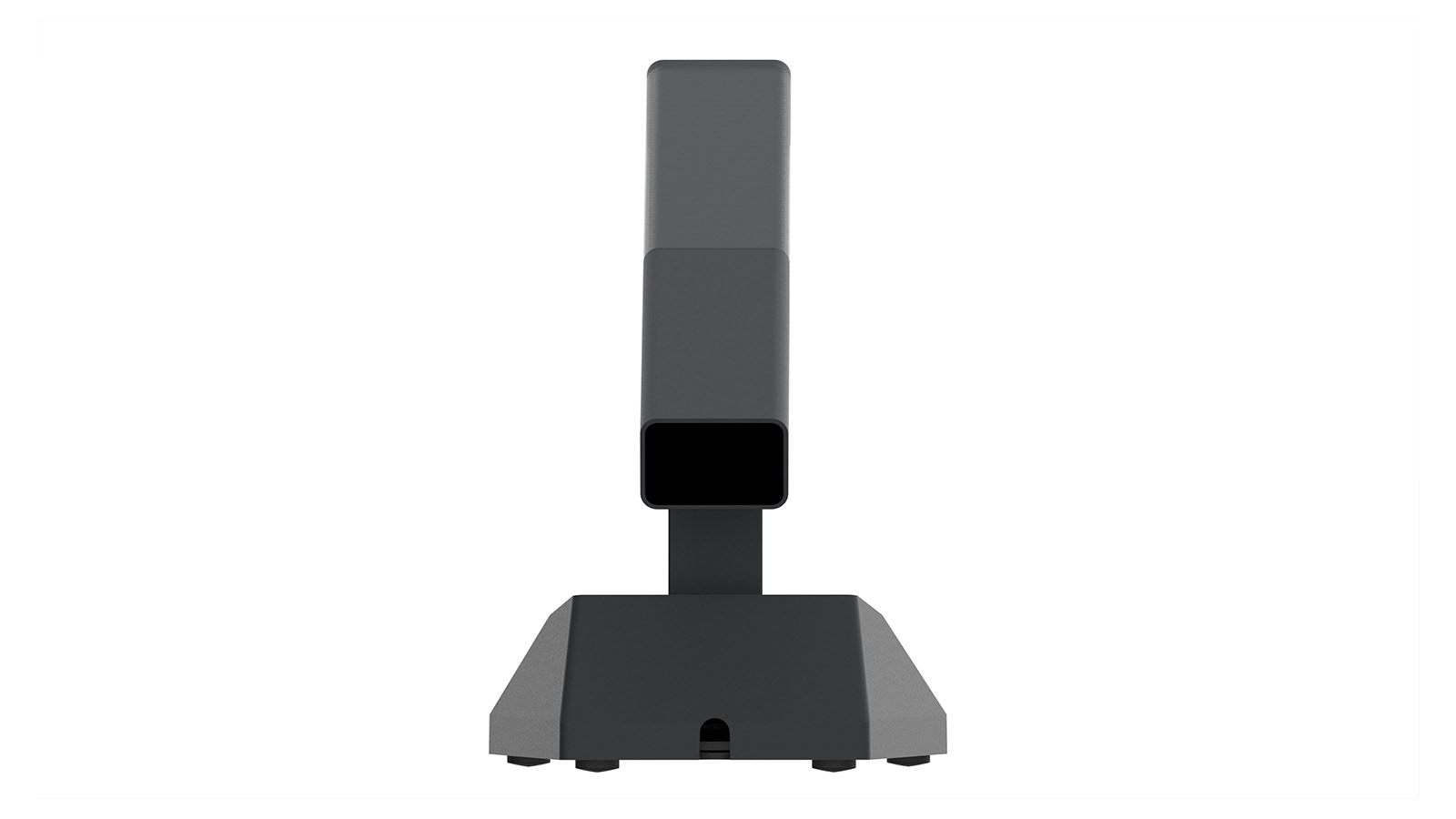

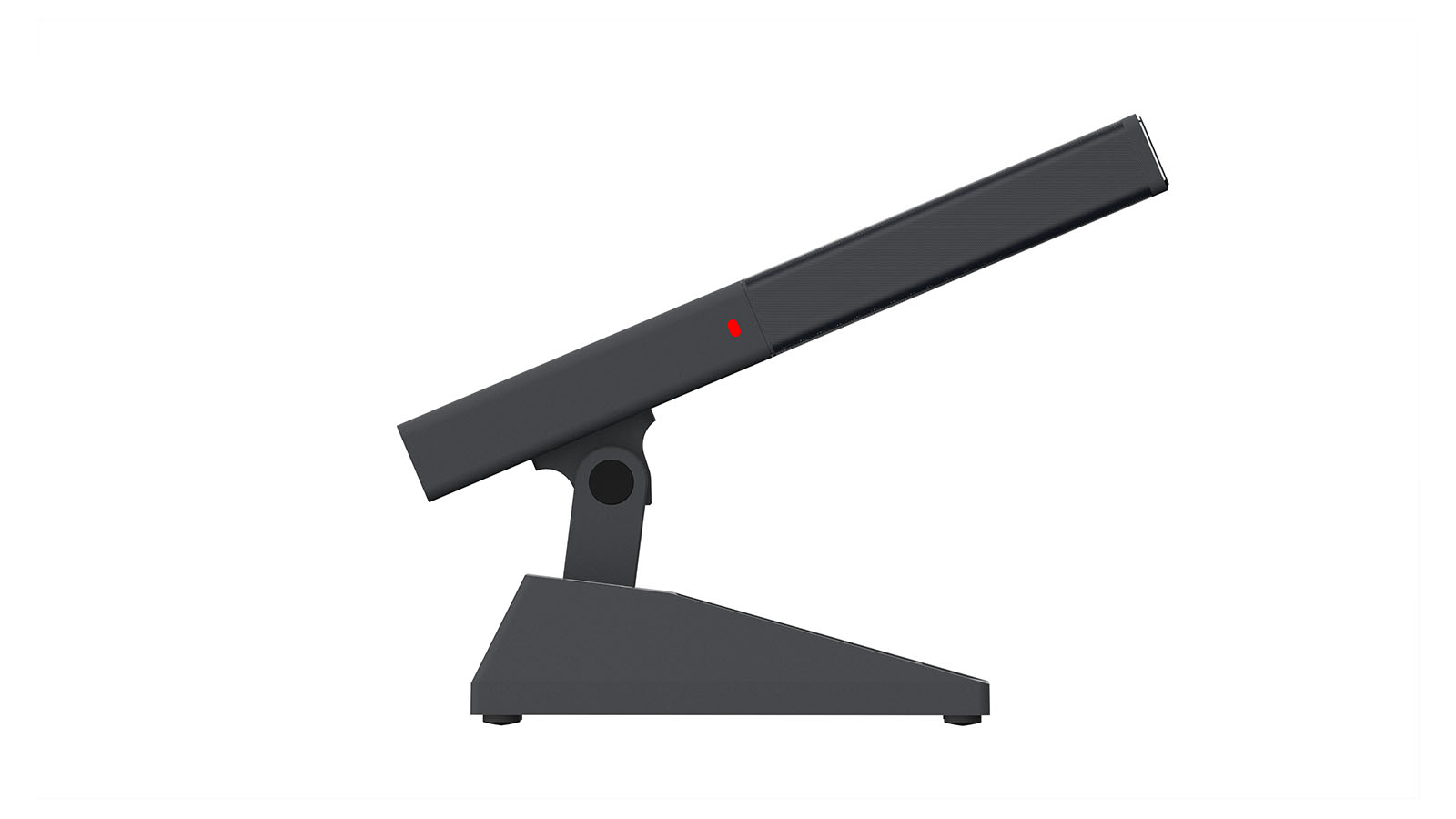

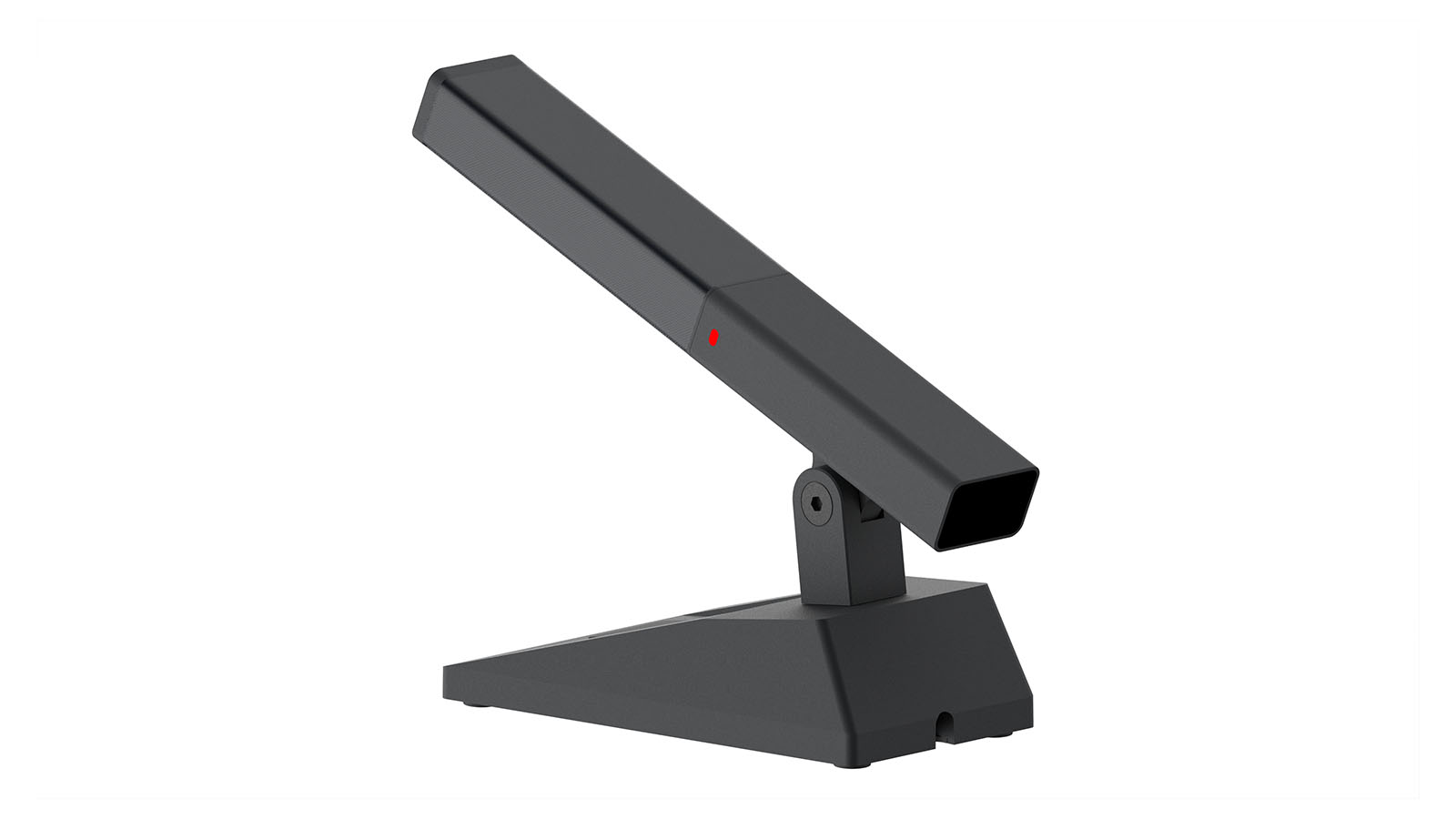

DCS-8311-G5

48V diamond base microphone short pole



This is a wide bandwidth capacitive cardioid directional microphone, featuring a short microphone rod and high sensitivity design, with a simple and atmospheric appearance. The microphone core is made of rubber cushioning material, which minimizes the impact of tabletop noise on microphone pickup. The appearance of the microphone adopts a metal oxide panel, and the simple and rugged appearance design shows a simple and dignified style. This conference microphone is specifically designed to serve the high-end conference market and is designed for high demand pickup applications such as enhanced pickup, professional recording, television broadcasting, and conferences.


Details

Radio head 25mm diameter gold-plated capacitive X1

Directional characteristic supercenter

Pickup distance 800-1000mm

Frequency response 60-18000 Hz, positive and negative 3dB

Sensitivity -36 dB

Output impedance less than 200 ohms

Maximum sound pressure withstand 136 dB (1% T.H.D. @ 1kHz, 0dB SPL=2x10 Pa)

Equivalent noise level of 16 dB, A-weighted

Phantom power supply 24V~48V DC

Mi pole size (length x width x height) 168 * 29 * 29 (mm)

Base size (length x width x height) 124 * 100 * 60 (mm)

Weight 0.8Kg

Output XLR three pin connector, microphone output 1.5 meters

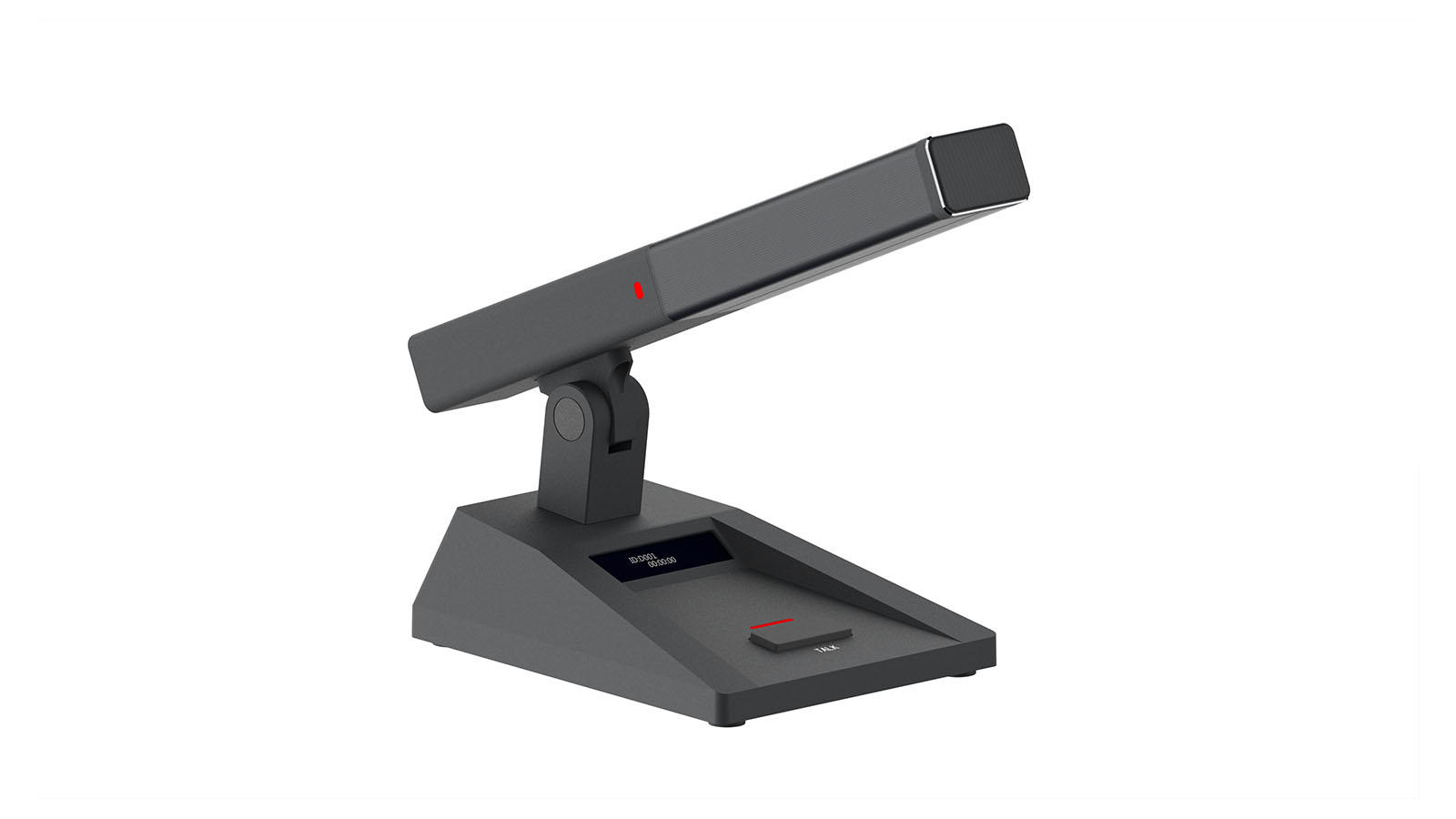

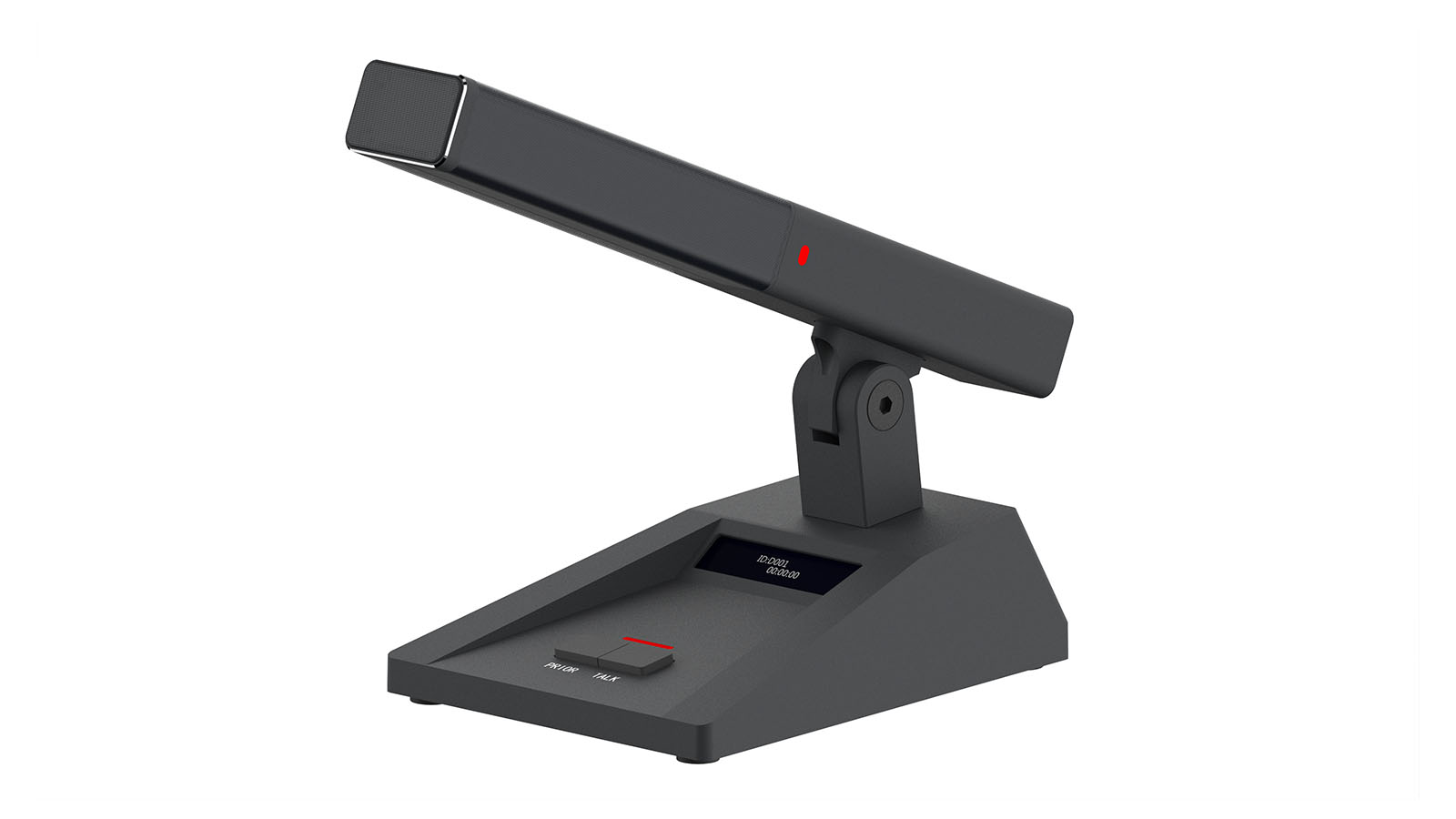

DCS-8311C-G5 Chairman Microphone
