Color screen square embedded microphone long pole

Color screen square embedded microphone long pole
Color screen square embedded microphone long pole
Color screen square embedded microphone long pole
Color screen square embedded microphone long pole

SE813D-G8

Color screen square embedded microphone long pole



Color screen square embedded microphone long pole

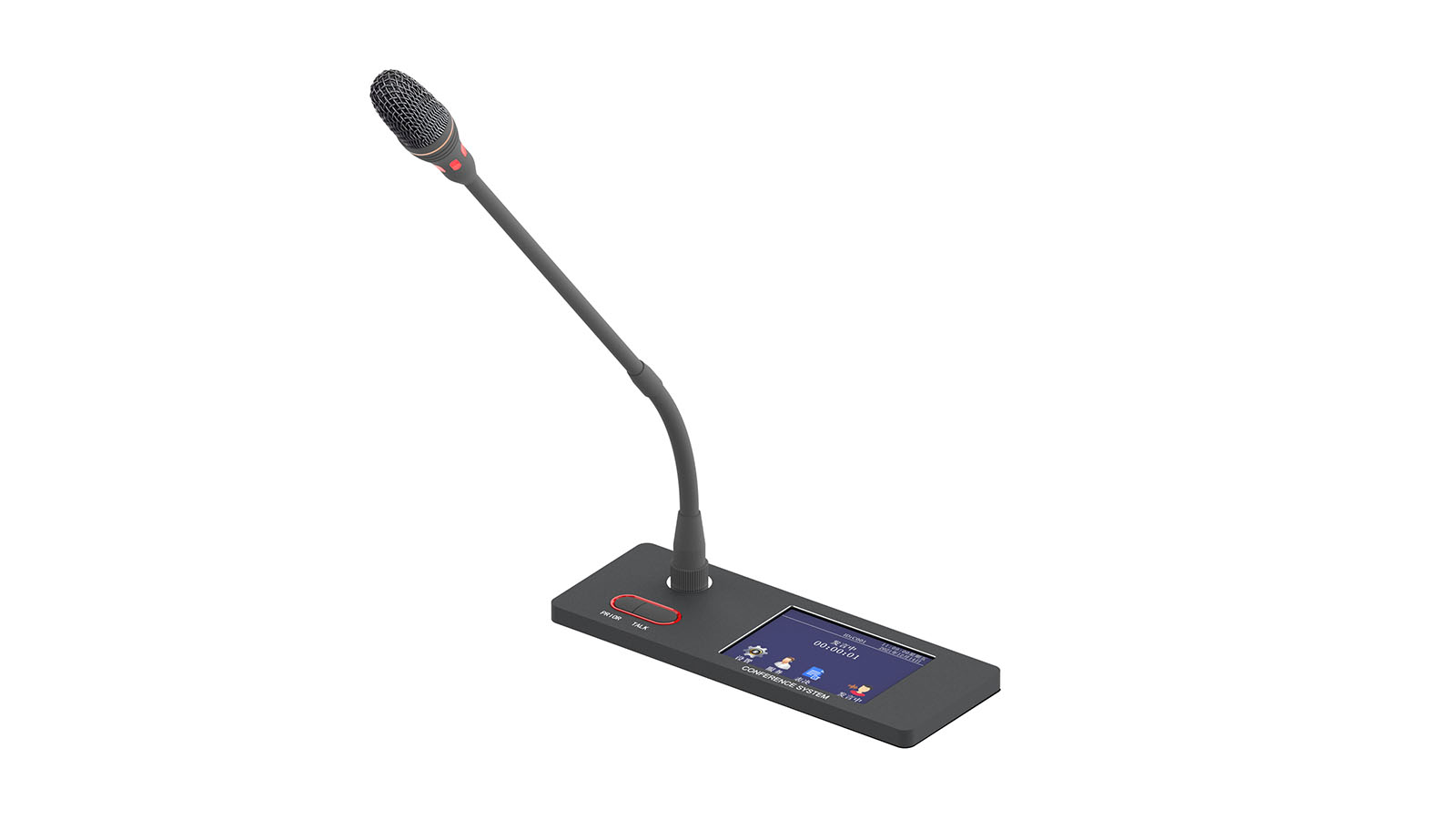

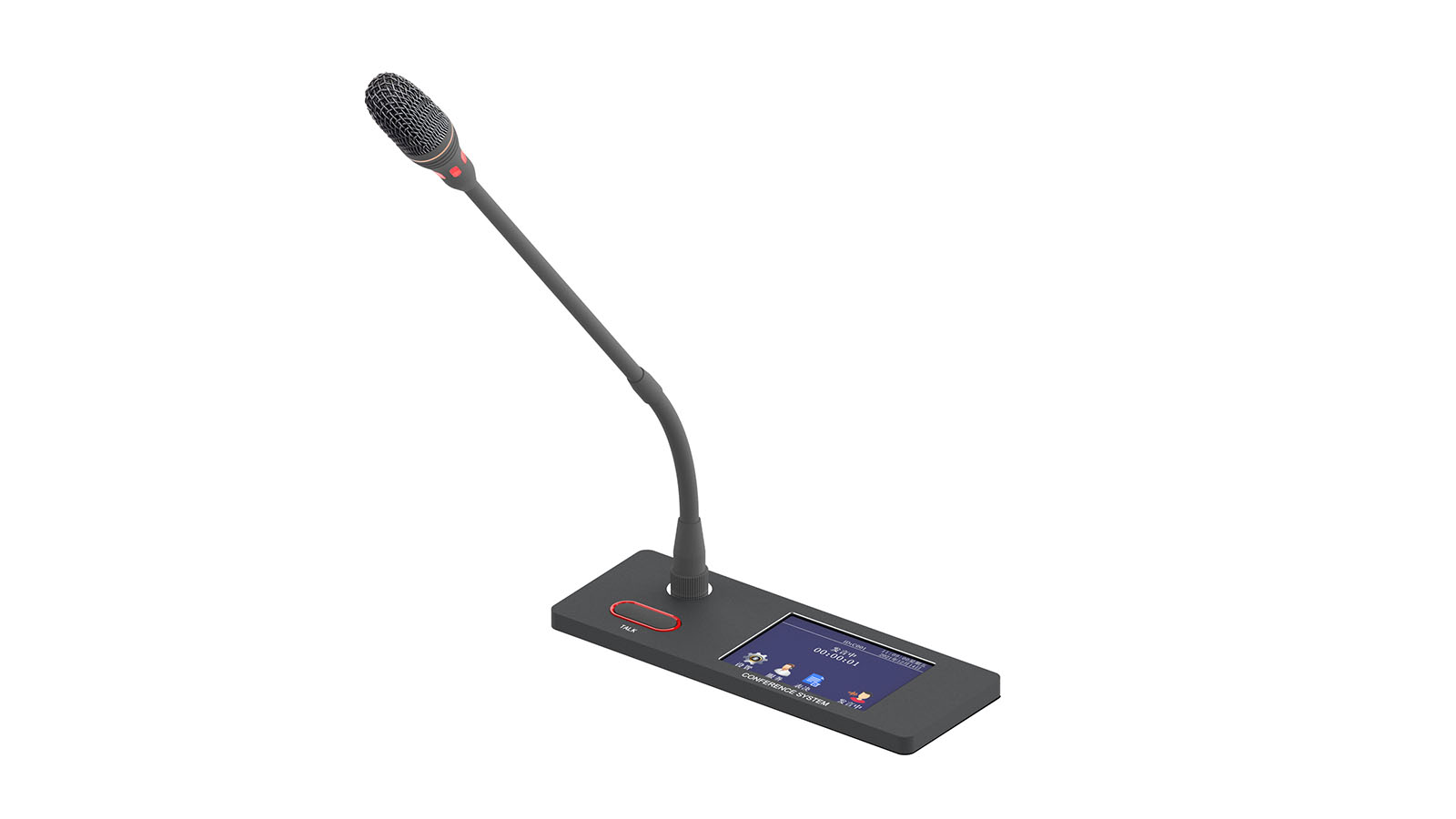

This conference unit adopts a long microphone pole with a high sensitivity design. The appearance is made of metal aluminum alloy, which is formed in one go. The appearance is simple and tough. The microphone microphone core is made of rubber shock-absorbing material to minimize the impact of tabletop noise on the sound pickup of the conference unit. The upper part of the conference unit has one TFT display screen, a 3.5-inch high-definition capacitive touch screen, and can be paired with a 180 degree positioning rotating microphone. The conference unit not only meets the requirements of normal speech management, but also supports functions such as image display and service request.


Details

1. Microphone pointing type: Supercardiac directional electret capacitor microphone;

2. Radio head: 14mm diameter gold-plated capacitive type x 1 (single pole with built-in dual microphone cores can be customized);

3. Audio circuit: 1 digital handheld microphone (normal function), 1 48V output XLR interface (this 48V output function is available in both digital and analog versions);

4. Frequency response: 20Hz~20KHz;

5. Microphone input impedance: 1K Ω;

6. Output impedance:<200 Ω;

7. Sensitivity: -36dB;

8. Maximum sound pressure level: 110dB;

9. Signal to noise ratio:>70dB (A);

10. Cross talk:>70dB;

11. Dynamic range:>80dB;

12. Equivalent noise: 16dB;

13. THD:<0.1%;

14. Maximum power consumption: 10W;

15. Connector: Comes with 1.5-meter aviation 8-core;

16. Color: Dark gray;

17. Display screen size: 3.5-inch color screen;

18. Display screen resolution: 480 x 320;

19. Power supply method: The host is powered by DC 24V;

20. Installation method: embedded;

21. Number of microphones: microphones x 1;

22. Product microphone size: 380mm;

23. Product base size (L x W x H): 232 x 133.7 x 92mm;

24. Net weight of the product: 1.05kg;


SE813C-G8 color screen square embedded microphone long pole
