Details

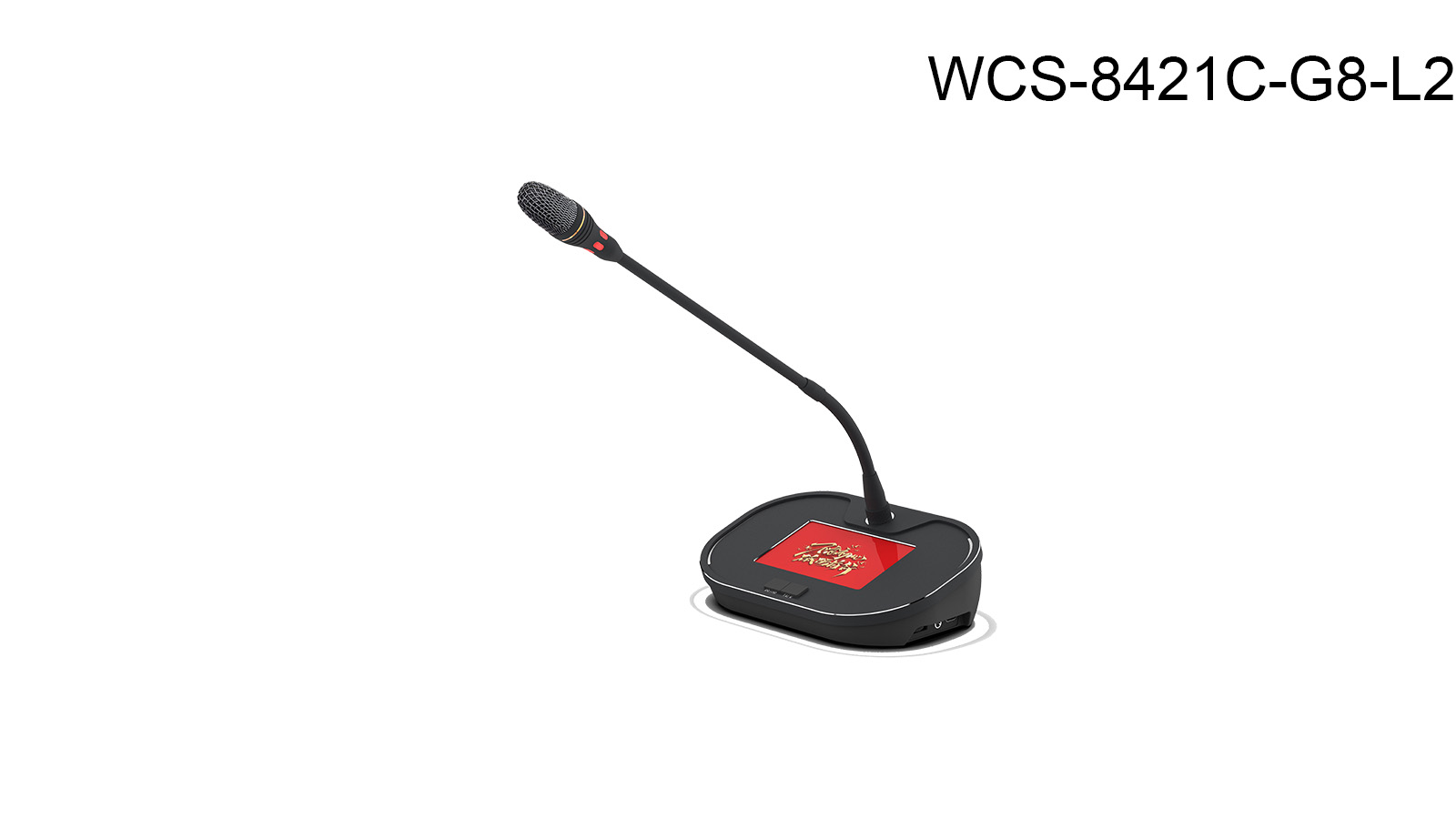

Product Features: ◆ Adopts brand-new network pure digital technology, an extra-large silent touch switch design, and a high-sensitivity microphone core, with a pickup distance of up to 80cm. ◆ 390mm metal gooseneck microphone stem design. ★ Red frosted indicator light on the microphone stem indicates the speaking status. A red light ring means the microphone is active. ◆ Features new touch control technology and a 4.3-inch full-color capacitive touch screen; displays various information and statuses of the microphone. ◆ Built-in 1 piece of 9.7MM gold-film microphone core with high sensitivity, supporting a pickup distance of up to 80cm. ◆ Chairman unit has priority function to fully control meeting order. (This function applies to chairman microphones, which can be placed at any position in the loop.) ◆ Each conference microphone has a unique ID number, supporting manual modification. ◆ Supports video tracking. When linked with a camera and set via the conference control host or PC software, it enables automatic camera tracking during speeches. ◆ In conjunction with the host, it supports 4 speaking modes: FIFO (First-In-First-Out) mode, limited speaking mode, time-limited speaking mode, and chairman permission mode. All modes support voice activation to activate the microphone. ◆ Allows simultaneous activation of 1 to 6 delegate microphones (excluding the chairman unit). ★ Supports control via APP and PC for on/off control, volume adjustment, and real-time monitoring. ★ Supports system check-in function, which can be completed via the microphone. ★ Supports voting. ★ Microphone gain is adjustable, and the volume of any microphone can be adjusted through PC software. ★ Displays real-time Beijing Time with a perpetual calendar, showing year, date, and week. It supports time/date adjustment without the host and remote network time synchronization. ★ Supports speaking timing and countdown. ★ Supports switching between Chinese and English operation interfaces. The system language can be unified via network or central control. ★ Supports attendee service request functions (e.g., pen, paper, water, waiter). With dedicated PC software and connection to the host, it can display no less than 10 service requests simultaneously. ★ Features dual backup speaking buttons: a physical button on the panel and a touch-screen button. ◆ Equipped with a TYPE-C charging interface. ◆ Chairman unit can be activated freely, unrestricted by the number of microphones turned on. ★ Microphone identity can be self-set and changed via the host (switching freely between delegate and chairman) for flexible use to meet high-end needs. (Note: Replacing the button assembly is required to enable the chairman priority function.) ◆ Wireless 5.2-5.8G transmission frequency band, supporting manual connection to AP. ◆ Built-in 3.7V 7000mAh removable lithium battery, delivering a maximum speaking time of 12 hours. ◆ Superior resistance to mobile phone RF interference. ◆ Chairman microphone is equipped with a chairman priority button to turn off active delegate microphones. (Exclusive to chairman microphones) ★ Unique self-detection function, in conjunction with software, automatically completes button, voting, and audio tests, simplifying pre-conference preparation and ensuring reliable meetings. (Requires APP or PC software support) ★ Supports custom main interface replacement, providing customized interfaces for clients. ### Technical Parameters: ■ Microphone Polar Pattern: Supercardioid electret condenser microphone ■ Sound Pickup Element: 9.7mm diameter gold-plated capacitive ×1 ■ Audio Line: 1-channel digital hand-in-hand microphone ■ Frequency Response: 80Hz～16KHz ■ Output Impedance: <200Ω ■ Sensitivity: -36dB ■ Maximum Sound Pressure Level: 110dB ■ Signal-to-Noise Ratio: >70dB(A) ■ Total Harmonic Distortion (THD): <0.1% ■ Maximum Power Consumption: 3W ■ Color: Dark gray ■ Display Size: 4.3-inch color screen ■ Display Resolution: 800×480 ■ Power Supply: 3.7V 7000mAh lithium battery ■ Installation Type: Desktop ■ Microphone Stem Quantity: 1 × microphone stem ■ Microphone Stem Length (L): 390mm ■ Base Dimensions (L×W×H): 107.5×145.9×50.8mm ■ Net Weight: 1.1kg

Note:Final parameters shall be subject to the quotation.
