Details

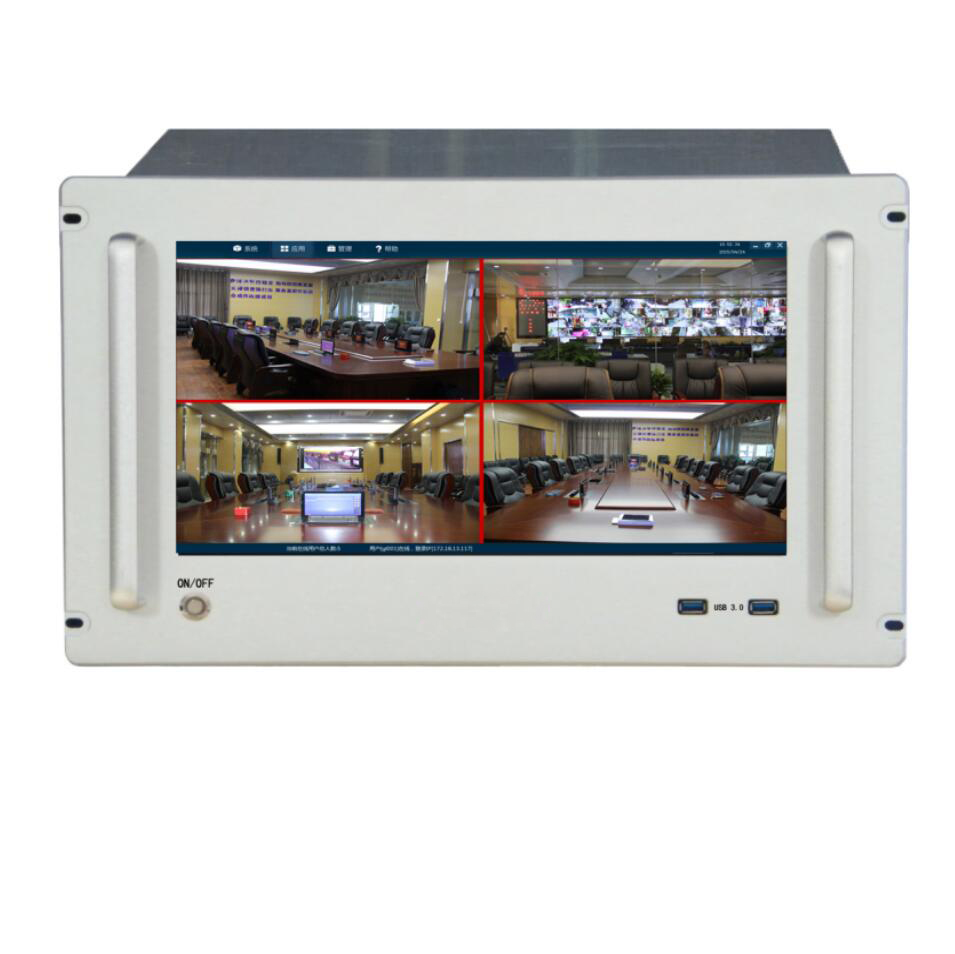

Intelligent paperless conference real-time video management host SD8002

Function description: Centralized multimedia intelligent paperless intelligent conference system for one conference room or multiple conference rooms (depending on the software) via the Internet

Effective management to enhance the ability of multimedia paperless intelligent conference systems to exchange, transmit, manage, and backup conference information. Two high-definition videos, including video push software.

Parameter Description:

Processor: Intel Core 6th Generation I7 with a main frequency of 3.2GHz

Main board: professional board

Hard disk: 2 SATA pull-out interface hard disk cases; 120G solid-state drive

Memory: DDR4 4G; Maximum support for DDR4/32GB

Touch technology/Surface hardness: Resistance touch/Mohs level 4

Touch points/sensing force: 1 point/<127g

Touch response time: 10ms

Display screen size: 15.6 "LCD display screen

Display resolution: 1920 * 1080/16:9

Power supply: Industrial grade ATX500W power supply

Operating platform: windows10

Video output interface: 1 HDMI, 1 VGA

Video input interface: 1 HDSDI, 1 HDMI

COM interface: 1 * RS232 can be extended, 1 * RS232 (remote on/off and restart interface)

USB: 4 * USB 2.0,; Front panel 2 * USB 3.0, rear panel 2 * USB 3.0

Network interface: Intel Gigabit independent network card

Material: Aluminum panel brushed and oxidized, 8MM thick, chassis metal baked paint high-strength 1.2MM thick, sturdy structure, shock resistant, radiation resistant, dustproof function: SGCC dustproof

Color: Silver panel

Installation method: 19 inch rack mounted installation

Appearance dimensions: 480 width * 308 height * 440 length MM

Aviation box packaging

Power requirement: AC220V 50/60HZ

Power: 400W

Weight: 22.5KG
