DCS-8111-G8

Tabletop conference microphone long pole

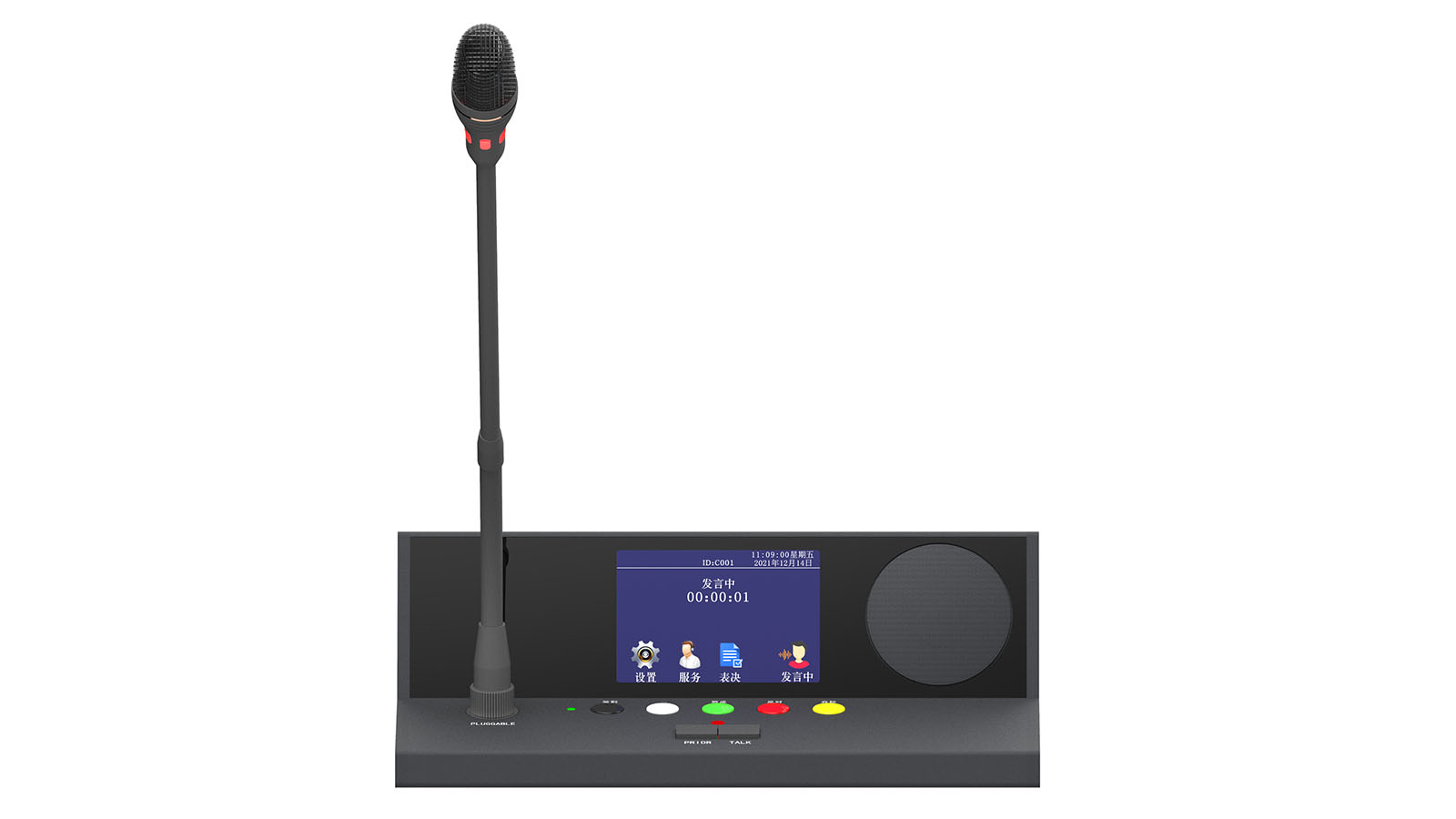

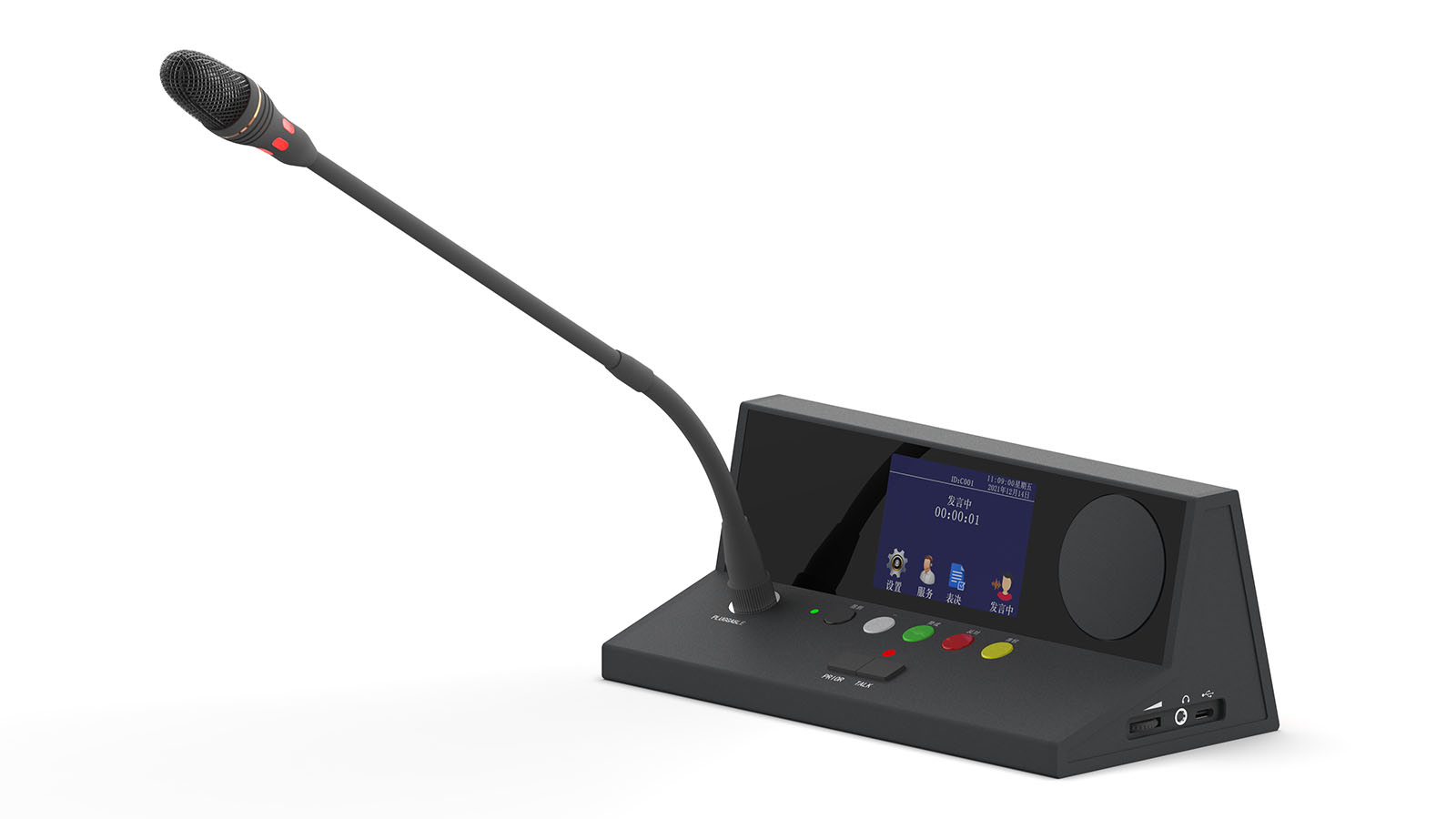

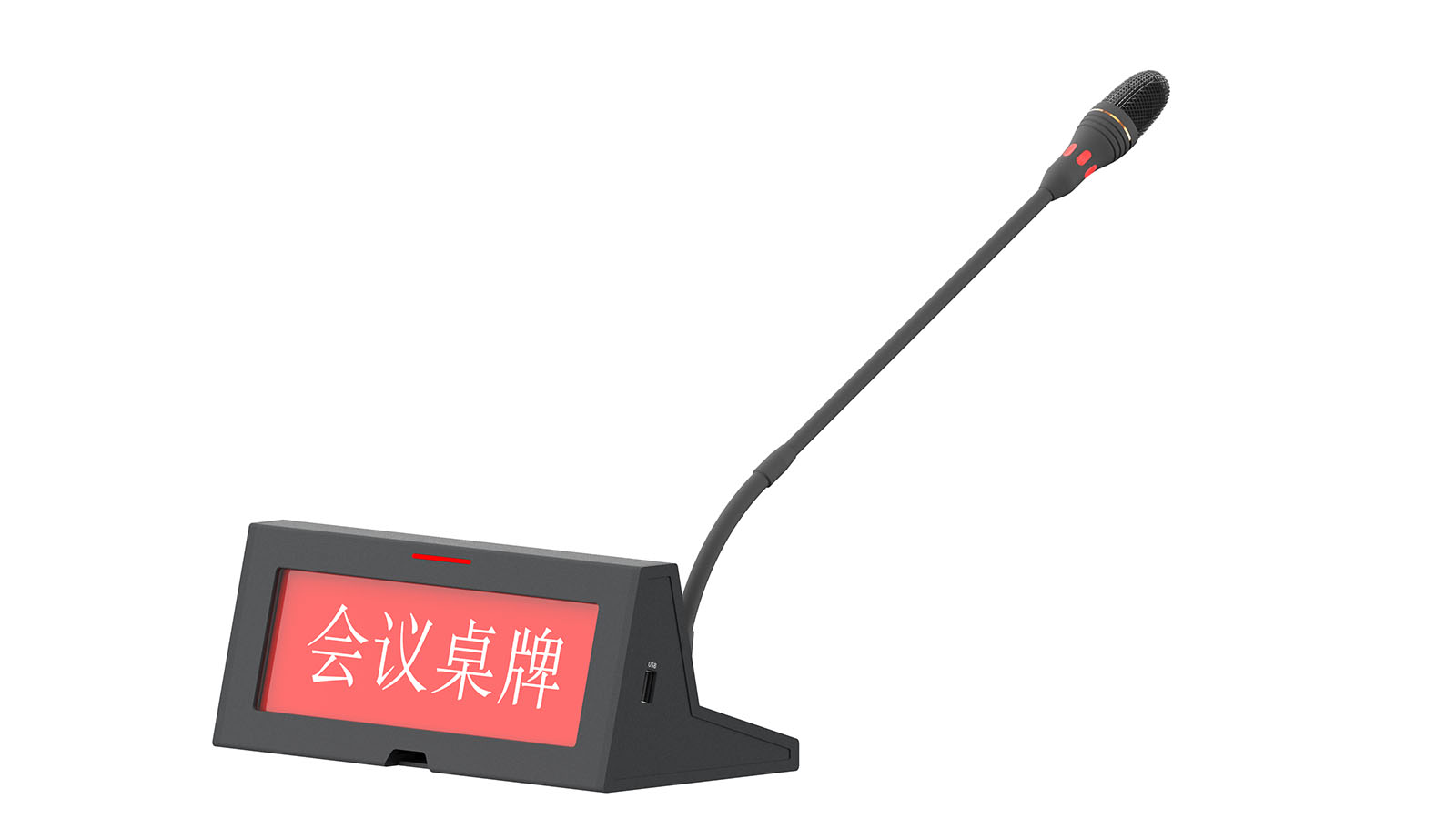

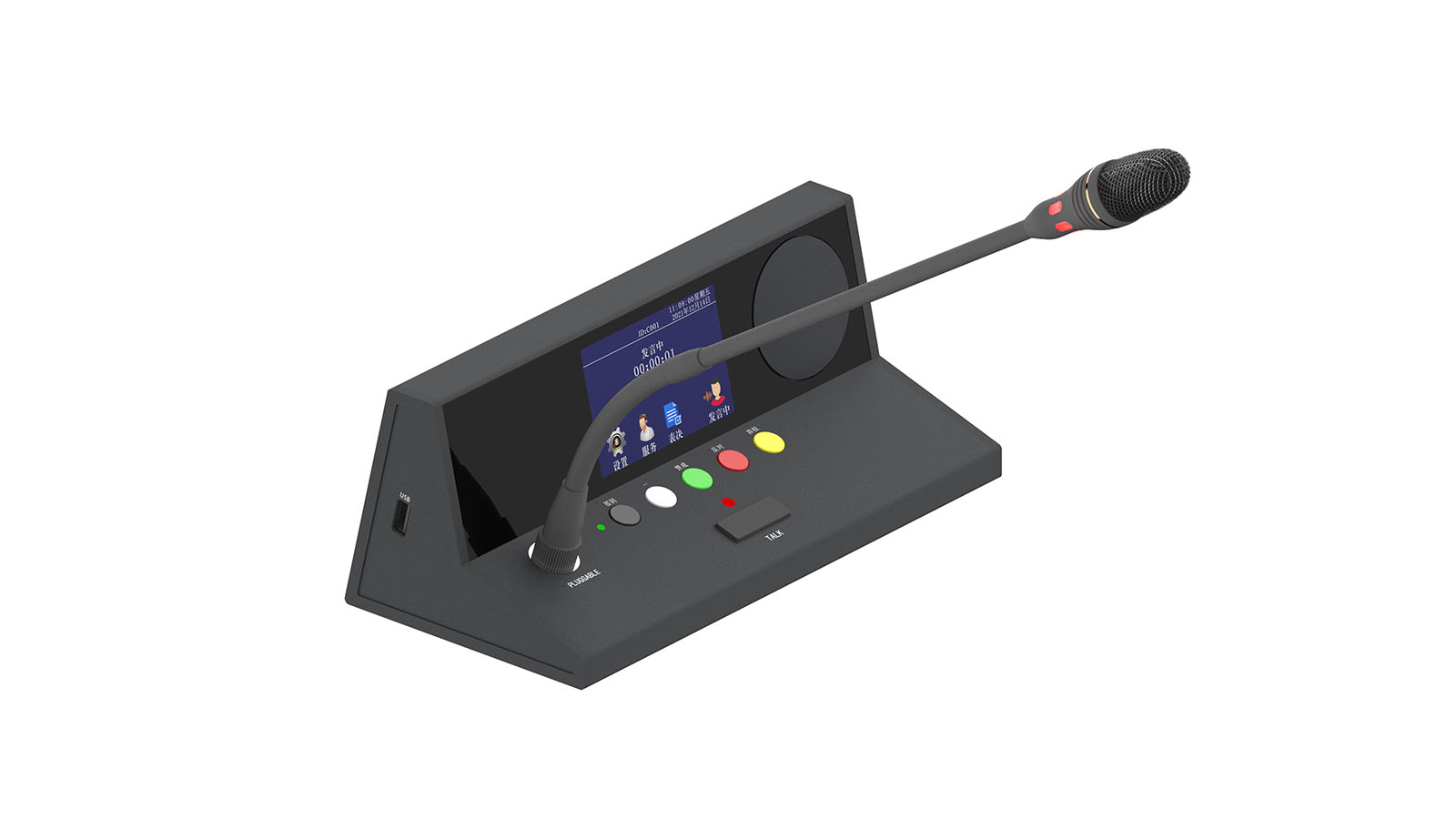

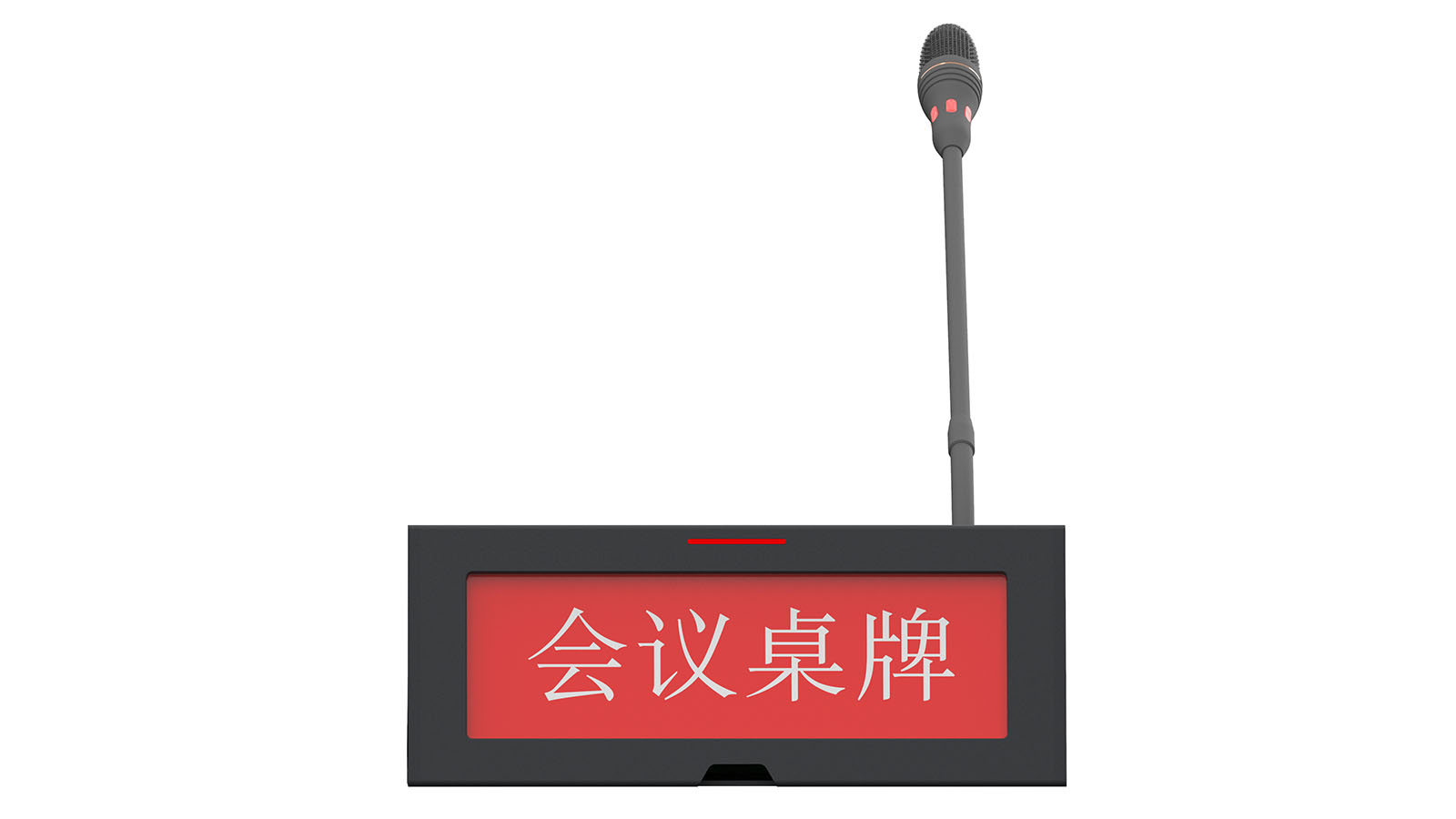

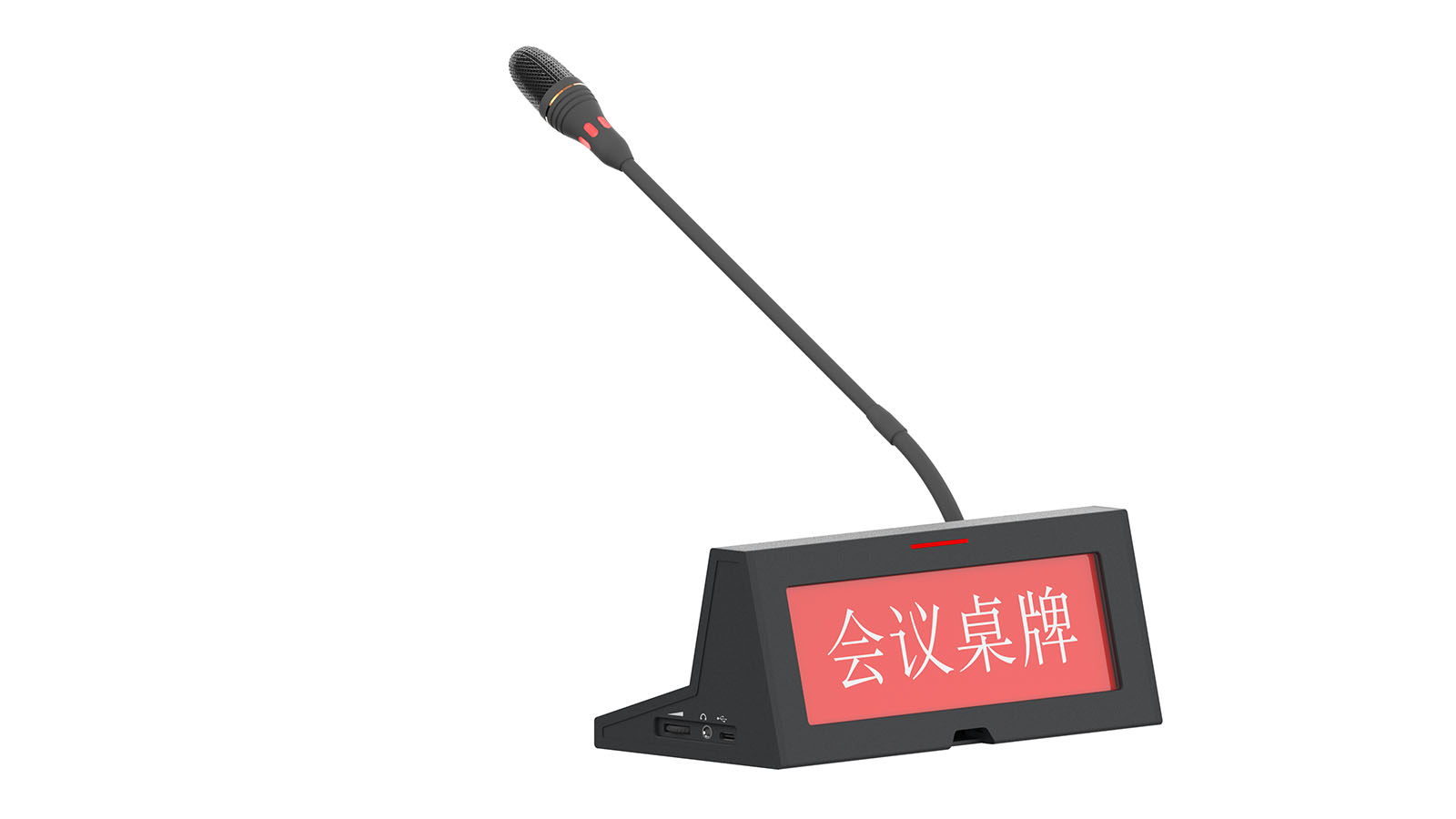

This conference unit adopts a long microphone pole and a high sensitivity design. The appearance is made of metal aluminum alloy formed in one go, combined with tempered glass. The appearance is simple and tough. The microphone microphone core is made of rubber shock-absorbing material to minimize the impact of table noise on the sound pickup of the conference unit. The conference unit has two TFT display screens on the top, a 3.5-inch high-definition capacitive touch screen on the front and a 7.8-inch high-definition display screen on the back. The conference unit not only meets the requirements of normal speech management, but also supports functions such as image display, table display, and service request.


Details

1. Microphone pointing type: Supercardiac directional electret capacitor microphone;

2. Radio head: 14mm diameter gold-plated capacitive type x 1;

3. Audio circuit: 1 digital handheld microphone (normal function), 1 48V output XLR interface (this 48V output function is available in both digital and analog versions);

4. Frequency response: 20Hz~20KHz;

5. Microphone input impedance: 1K Ω;

6. Output impedance:<200 Ω;

7. Sensitivity: -36dB;

8. Maximum sound pressure level: 110dB;

9. Signal to noise ratio:>70dB (A);

10. Cross talk:>70dB;

11. Dynamic range:>80dB;

12. Equivalent noise: 16dB;

13. THD:<0.1%;

14. Maximum power consumption: 10W;

15. Headphone load:>16 Ω;

16. Headphone volume: maximum 40mW;

17. Headphone interface: 3.5mm dual channel jack;

18. Connector: Comes with 1.5-meter aviation 8-core;

19. Color: Dark gray;

20. Display screen size: 3.5-inch color screen (front) \ 7.8-inch color screen (rear);

21. Display resolution: 480 * 320 \ 1280 * 400 ';

22. Power supply method: The host is powered by DC 24V;

23. Installation method: desktop style;

24. Number of microphones: microphones x 1;

25. Product microphone size (L x W x H): 380mm;

53. Product base size (L x W x H): 232 x 133.7 x 92mm;

54. Net weight of the product: 1.05kg;


DCS-8111DV-G8 Table Card Conference Representative Microphone Long Pole
